5ply Cardboard Fold And Glue Machine 4000 Pieces/Hour Flexible Operation

Name: 5ply Cardboard Fold And Glue Machine 4000 PiecesHour Flexible Operation
Brand: RINO
Price: 1 USD

Buy cheap 5ply Cardboard Fold And Glue Machine 4000 Pieces/Hour Flexible Operation product

Brand Name : RINO

Model Number : HF-GD3300

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 20 Set/Month

Delivery Time : 40-60 Working Days After Deposit

Packaging Details : Wrapped with film or in wooden case

Name : 3300 Double Pieces Carton Box Folder Gluer Machine Corrugated Board Folding Gluing Machine

Maximum Size : 1650×1200mm

Minimum size : 470×300mm

Applicable Paper : A-E corrugated board and 5ply cardboard

Maximum speed : 4000 pieces/hour

Total power : 11 kw

Weight : 4000 KG

Overall Dimensions : 8000×4500×1400mm

Contact Now

3300 Double Pieces Carton Box Folder Gluer Machine Corrugated Board Folding Gluing Machine

Introduction Of Carton Box Folder Gluer Machine

Semi-automatic corrugated box gluing machine is the most advanced equipment to fill the domestic manufacturers of corrugated box labor costs rising trend, the equipment has high efficiency, flexible operation, low maintenance costs, production efficiency and the traditional manual increase more than ten times. The advantages of this device is automatic feeding, dispensing, bonding. To meet the variety, mass production requirements, to adapt to food, cotton and other product packaging needs, is the ideal carton equipment, corrugated box industry, is the essential equipment for this scope.

Parameter

Model	HF-GD2400	HF-GD2900	HF-GD3300
Max. Size	1200×1200 mm	1450×1200mm 1450×1450mm	1650×1200mm 1650×1650mm
Min size	470×300mm	470×300mm	470×300mm
Applicable Paper	A-E corrugated board and 5ply cardboard	A-E corrugated board and 5ply cardboard	A-E corrugated board and 5ply cardboard
Max speed	0-4000 pieces/hour	0-4000pieces/hou	0-4000 pieces/hour
Total power	11 kw	11 kw	11kw
Weight	3300 KG	3500kg	4000KG
Dimensions	8000×4500×1400	8000×5300×1400	8000×5500×1400

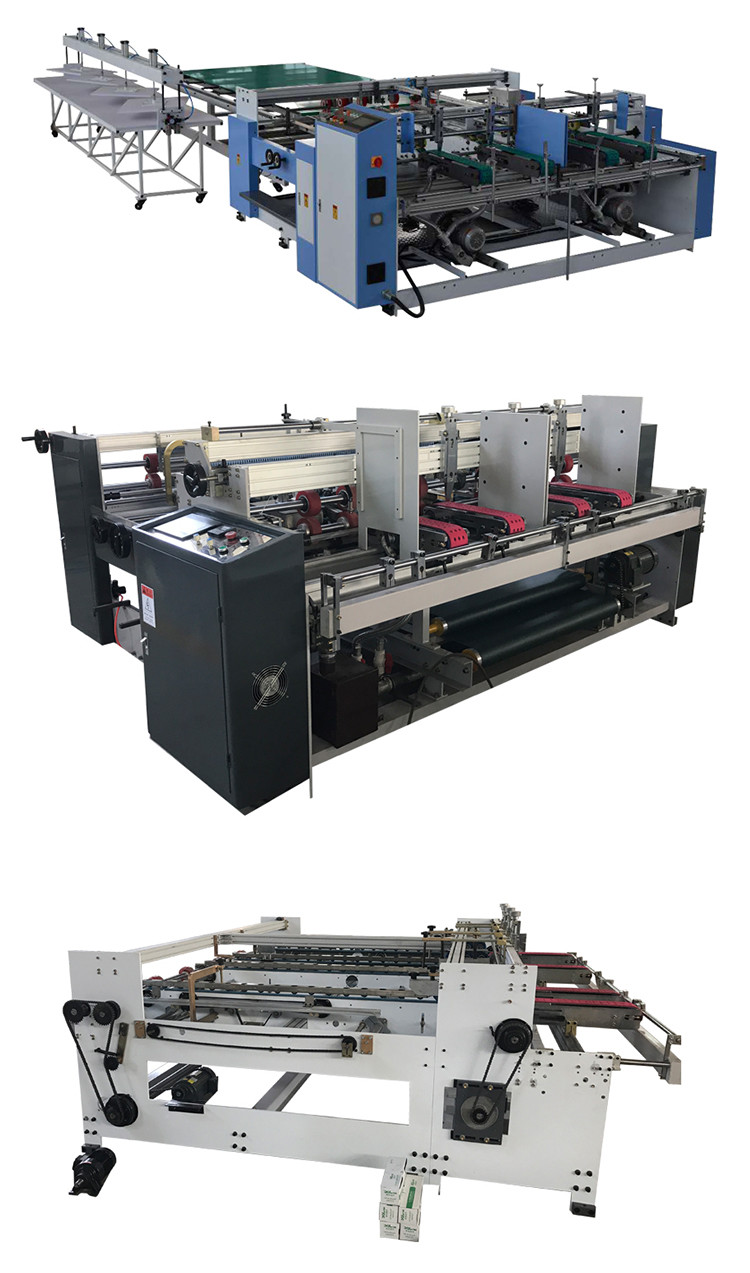

Machine details

5ply Cardboard Fold And Glue Machine 4000 Pieces/Hour Flexible Operation

Parts List

PARTS NAME	BRAND
MAIN MOTOR	SEIMENS
FEEDING MOTOR	ZHONGDA (ZD CHINA)
FEEDING PUMP	NAXIDE (CHINA )
LINEAR GUIDEWAY	KOREA IMPORTED
GUIDE SCREW	HIWIN TAIWAN
SOLENOID VALVE	AIRTAC TAIWAN
INVERTER	TAIWAN DELTA
SERVO MOTOR	DELTA TAIWAN
HUMAN MACHINE INTERFACE	TAIWAN DELTA
POWER	TAIWAN DELTA
PROGRAM CONTROLLER	TAIWAN DELTA
FASTENERS	TAIWAN JINYI, PENGCHI, CYZ, EG
RELAY	JAPAN IMPORTED

5ply Cardboard Fold And Glue Machine 4000 Pieces/Hour Flexible Operation
